Electro-Galvanized Steel VS Hot-Dip Galvanized Steel

When investing in a high-quality Padel court, one of the most important structural decisions is the type of steel protection used in the frame and supporting components. Buyers often compare Electro-Galvanized Steel VS Hot-Dip Galvanized Steel to understand which material offers better durability, corrosion resistance, and long-term value.

Although both materials use zinc coatings to protect steel from rust, their performance differs significantly, especially in outdoor and coastal environments.

This guide explains the differences between Electro-Galvanized Steel VS Hot-Dip Galvanized Steel, compares their advantages and disadvantages, and helps procurement managers choose the most suitable option for their padel court projects.

Quick Recommendation for Buyers

In most professional outdoor applications, Hot-Dip Galvanized Steel is the preferred choice because of its superior corrosion resistance and longer service life.

What Is Electro-Galvanized Steel?

Electro-Galvanized Steel is produced by applying a thin layer of zinc to the steel surface through an electrochemical process.

Key Characteristics

• Smooth and uniform surface finish

• Attractive appearance

• Thin zinc coating

• Lower manufacturing cost

• Suitable for indoor or low-corrosion environments

Typical Zinc Coating Thickness

• 5–25 microns (μm)

Because the zinc layer is relatively thin, Electro-Galvanized Steel provides limited protection when exposed to rain, humidity, or salt air.

What Is Hot-Dip Galvanized Steel?

Hot-Dip Galvanized Steel is manufactured by immersing steel components into molten zinc at approximately 450°C. During this process, the zinc forms a metallurgical bond with the steel surface.

Key Characteristics

• Thick zinc coating

• Strong adhesion

• Full protection of internal and external surfaces

• Excellent resistance to corrosion and abrasion

• Long-term durability in outdoor environments

Typical Zinc Coating Thickness

• 65–120 microns (μm)

• Premium projects may specify 80 microns or more

The significantly thicker coating is the main reason why Hot-Dip Galvanized Steel outperforms Electro-Galvanized Steel in demanding conditions.

Electro-Galvanized Steel VS Hot-Dip Galvanized Steel: Manufacturing Process

When comparing Electro-Galvanized Steel VS Hot-Dip Galvanized Steel, the manufacturing method directly affects corrosion performance and service life.

Corrosion Resistance Comparison

For outdoor Padel court structures, corrosion resistance is often the most important consideration.

Expected Service Life

The service life difference is one of the strongest arguments in the Electro-Galvanized Steel VS Hot-Dip Galvanized Steel comparison.

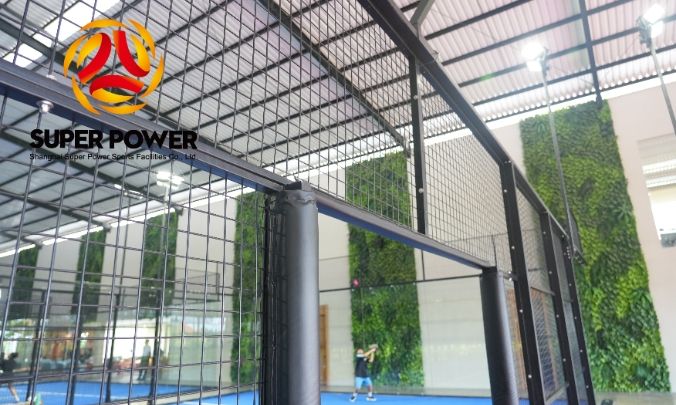

Why This Matters for Padel Court Structures

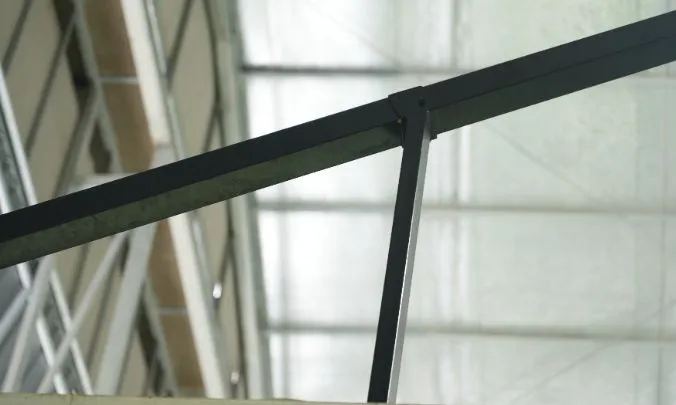

A typical Padel court includes multiple steel components:

• Structural posts

• Mesh panels

• Door frames

• Top beams

• Lighting poles

These components are continuously exposed to:

• Rain and moisture

• UV radiation

• Temperature changes

• Ball impact and vibration

• Salt spray in coastal areas

If the protective coating fails, rust can spread quickly and compromise both appearance and structural integrity.

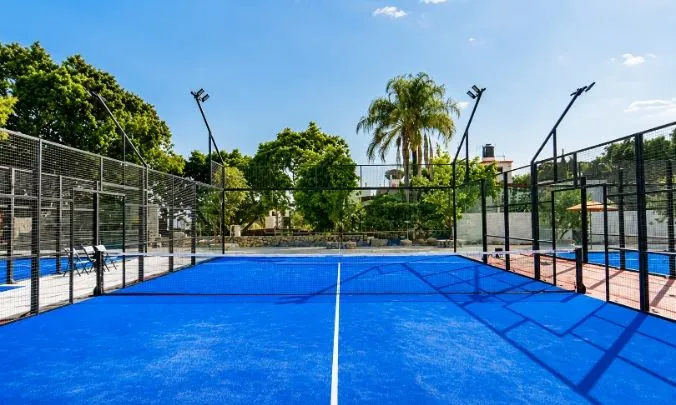

Why Coastal Projects Require Hot-Dip Galvanized Steel

coastal areas present one of the most aggressive environments for steel structures. Chloride ions in sea air accelerate corrosion dramatically.

Corrosion Risk by Distance from the Sea

In these environments, Electro-Galvanized Steel VS Hot-Dip Galvanized Steel is not a close comparison. The thicker zinc layer of Hot-Dip Galvanized Steel offers far greater protection and significantly reduces maintenance costs.

Cost Comparison

Although Hot-Dip Galvanized Steel has a higher upfront cost, its total lifecycle cost is usually lower.

Powder Coating for Additional Protection

Many premium Padel court manufacturers use:

Hot-Dip Galvanized Steel + Outdoor Polyester Powder Coating

This dual-protection system combines:

1. Zinc coating for corrosion resistance

2. Powder coating for UV protection and aesthetics

Typical total protective thickness:

• Hot-dip galvanizing: 80–120 μm

• Powder coating: 60–100 μm

• Combined protection: 140–220 μm

This configuration is widely used for long-lasting outdoor installations.

Industry Standards to Look For

When evaluating suppliers, buyers should verify compliance with recognized international standards such as:

• International Organization for Standardization

• ASTM International

• Qualicoat

These standards help ensure consistent coating thickness and reliable performance.

Best Material Configuration for Outdoor Padel Courts

For professional outdoor Padel courts, the recommended structure is:

S355 Structural Steel + Hot-Dip Galvanized Steel (≥80 μm) + Outdoor Polyester Powder Coating

This combination provides:

• Excellent corrosion resistance

• High structural strength

• Attractive appearance

• Low maintenance

• Long service life

How to Choose Between Electro-Galvanized Steel VS Hot-Dip Galvanized Steel

Choose Electro-Galvanized Steel if:

• The court will be installed indoors

• Budget is highly constrained

• The project is temporary

• Environmental exposure is minimal

Choose Hot-Dip Galvanized Steel if:

• The court will be installed outdoors

• The site is near the sea

• The project is intended for long-term use

• Maintenance costs must be minimized

• The project targets premium quality

Final Verdict: Electro-Galvanized Steel VS Hot-Dip Galvanized Steel

In the comparison of Electro-Galvanized Steel VS Hot-Dip Galvanized Steel, the winner for most outdoor Padel court projects is clear.

• Electro-Galvanized Steel offers a smooth finish and lower initial cost, making it suitable for indoor or temporary installations.

• Hot-Dip Galvanized Steel provides significantly thicker zinc protection, superior corrosion resistance, and much longer service life.

For commercial clubs, resorts, public sports facilities, and especially coastal projects, Hot-Dip Galvanized Steel is the most reliable and cost-effective long-term investment.

If your goal is to build a durable, low-maintenance, and premium-quality Padel court, Hot-Dip Galvanized Steel is the material that delivers the best overall value.
